Splice format: Ends opposed.
Applications: Composites processes such as filament winding, pultrusion, and weaving.
Yarns: Carbon fibre, glass fibre, aramid, Panox, synthetic C.F.
Yarn counts:Nm 0.07 to 200, 5 to 16000 tex.
Twist: Low twist.
Model 122 for Composites
About the splicer
About the splicer

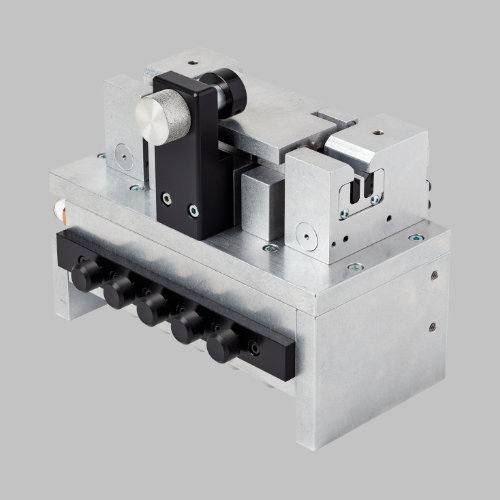

The Model 122 is a completely new form of yarn splicer, with advanced features. It makes splices of the highest quality in modern materials such as carbon fibre. These applications demand excellent appearance and unmatched consistency. To meet the new standards, the Model 122 has some new features. It has multiple splicing chambers and an advanced cutting system.
Why multiple splicing chambers? Put simply, the 122 does exactly the same job as splicers like the 701 and the 103, but without the need for manual intervention – it makes all three splices, semi-automatically.
Why an advanced cutting system? Carbon fibre and glass fibre are generally used in the form of tows – from perhaps 600 tex to 16000 tex, and above. Large tows are difficult to cut with conventional scissor systems. Aramid yarns are simply very difficult to cut, and they cause conventional scissor knives to go blunt very quickly. So an improved cutting system is needed both for large tows and for aramids.
The 122 has such a system; the cutters reciprocate at great speed to make not one cutting action, but dozens.
Thread the first yarn through the splicer, from left to right, so that the free end projects on the right hand side.
Once the first yarn is secured in the clamps at either end of the splicer, thread the second yarn through the splicer, from right to left, so that the free end projects on the left hand side.
The two yarns must pass cleanly through the three splicing chambers.
Close the lid and secure in place with the cam assembly. Press the 5 buttons in sequence from left to right.
