Splice format: Ends together
Applications: Carpet weaving, carpet tufting, upholstery yarns, fancy yarns.
Yarns: Synthetic C.F., synthetic staple, woollen spun, worsted spun, all fibre blends.
Yarn counts:Nm 0.5 to 200, 5 to 2000 tex.
Twist: Any twist direction and level. S twist to Z twist. No modification needed.

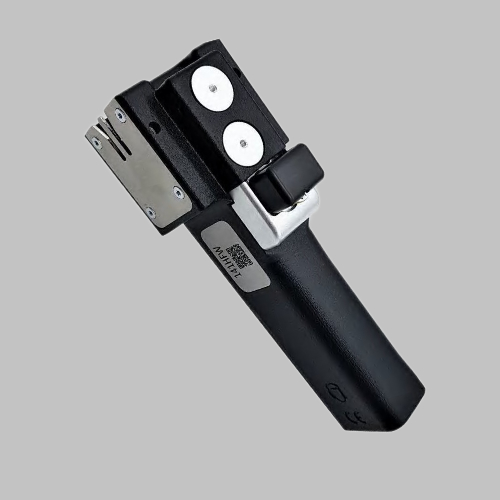

All the features of the Model 133 – with the capacity for bigger yarns.
The 134 is the latest development of the splicing principles established long ago by the Airbond Models 101 and 103. Those splicers are still used and respected world-wide by carpet manufacturers and spinners. The 103 improved on them; its performance was enhanced with the fitting of a set of automatic cutters, which are adjustable for optimum performance. The new Model 134 is an enhanced version of the 133; it is capable of splicing higher-count yarns. It accomplishes this by having an extended side-cheek.. Like the Model 133, the 134 improved standards by reducing the need for operator skill.
Like its predecessors, the 134 joins a vast range of yarns. It can join high- or low-twist, S-twist or Z-twist on one chamber. Even S-twist to Z-twist, wool to cotton, glass to tyre cord. Because it is printed, its body can be supplied in many forms, just as the Model 133. In its base form, it can be a tiny splicer, designed to work in confined spaces; but it can be fitted with handles, or with a hanging device to be used in a fixed position, or with a carriage for sliding along a rail. It can be also offer enhanced yarn control – using a side-plate fitted with yarn clamps. It can have flow control, so that line the air blast can be adjusted without altering the factory line pressure.
Interested in the Product? Would like to find out more?
